DESCRIPTION

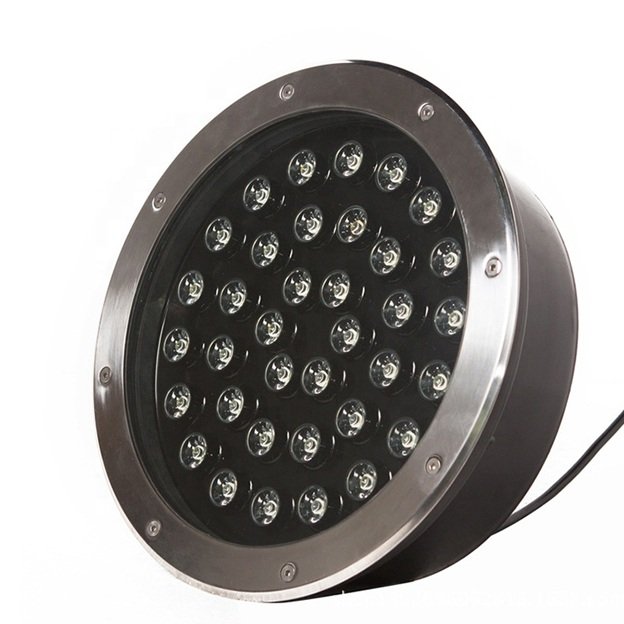

The Adjustable Recessed Ground LED Spotlight is a high-precision architectural luminaire engineered specifically for in-ground accent lighting and vertical wallwashing. Equipped with a tilting internal optical unit, it allows installers and lighting designers to direct the light beam with precision, perfectly aligning with architectural columns, facades, and landscape structures without re-adjusting or moving the outer housing.
Built to withstand severe environmental exposure and physical strain, the fixture is constructed from premium 316 stainless steel (SS), a heavy-duty aluminum body, and a high-impact tempered glass lens. With an IP67 protection rating, it is completely sealed against dust and water ingress.
DATASHEET
TECHNICAL SPECIFICATIONS
| REFERENCE CODE | EK-161440RF |
| MATERIAL | SS+Aluminum+Tempered glass |
| POWER (W) | 16 |
| LUMINOUS FLUX (LM) | 1440 |
| COLOR TEMPERATURE (K) | 3000K |
| CRI | >80 |
| IP RATING | IP67 |
| INPUT VOLTAGE (V) | DC24V |
| BEAM ANGLE | 30° |
| SIZE (MM) | 240*120 |
| LIFESPAN (HOURS) | 20000 to 50000 |
| CERTIFICATION | CE, RoHs |
| DIMMING OPTION | Compatible with external DALI and PWM dimming drives |
