DESCRIPTION

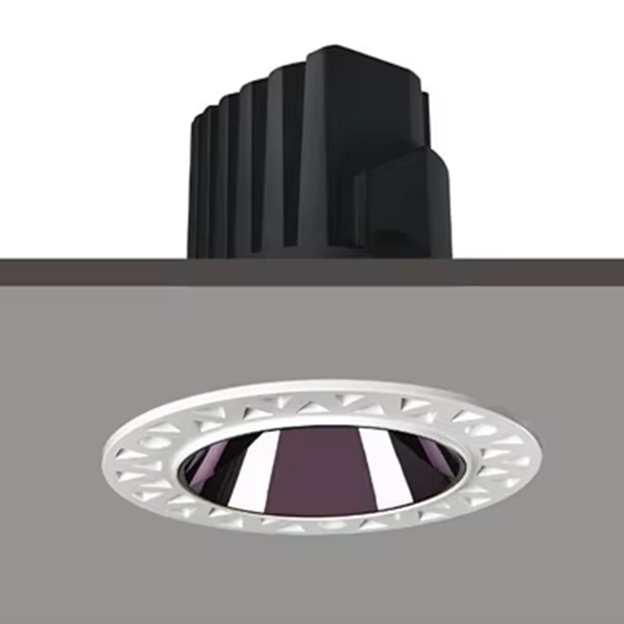

This high-performance trimless COB LED downlight is engineered for seamless architectural integration, featuring a perforated mounting frame designed for plaster-in flush ceiling installation. Equipped with a deep-set black anti-glare reflector, it delivers superior visual comfort with minimal glare. Built with a heavy-duty aluminum body and a robust rear radiator heatsink, it ensures effective passive thermal dissipation and extended LED lifespan, making it ideal for high-end residential, hotel, gallery, and commercial lighting projects.
TECHNICAL SPECIFICATIONS
| REFERENCE CODE | EK-30092 |
| MATERIAL | Aluminium |
| POWER (W) | 9W |
| LUMINOUS FLUX (LM) | lm |
| COLOR TEMPERATURE (K) | 3000K-4000K-5000K |
| CRI | > 90 |
| IP RATING | IP20 |
| INPUT VOLTAGE (V) | AC220240V 50/60Hz |
| BEAM ANGLE | 15/24/36° |
| SIZE (MM) | Ø105x88mm |
| CUT-OUT SIZE (MM) | 75MM |
| LIFESPAN (HOURS) | 50000 h |
| LUMINOUS EFFICACY (LM/W) | 121LM/W |
| CERTIFICATION | CE |
